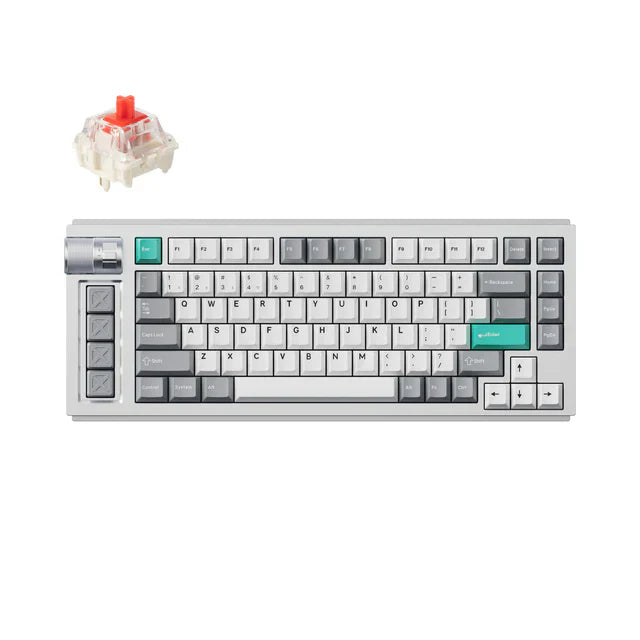

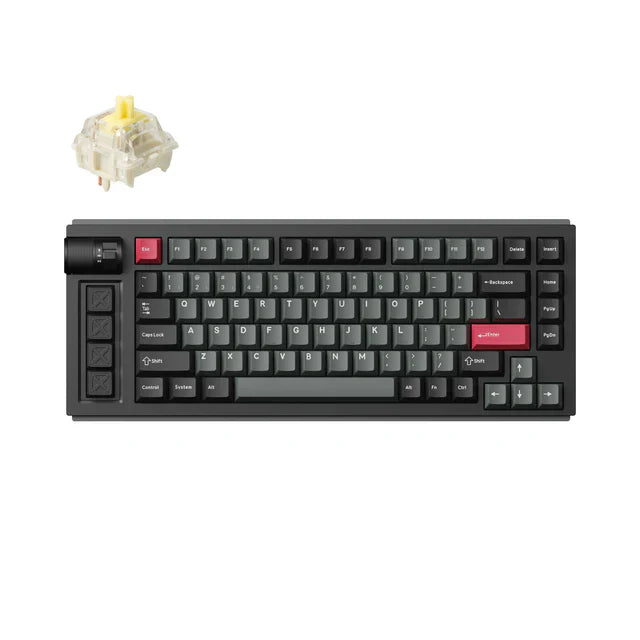

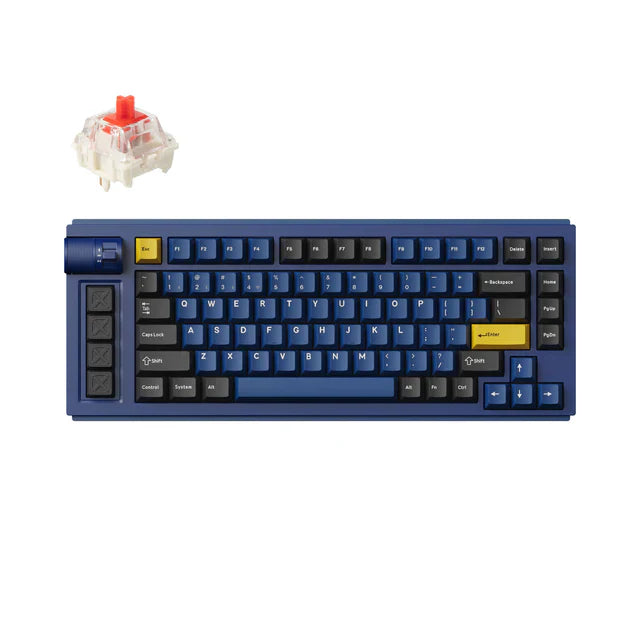

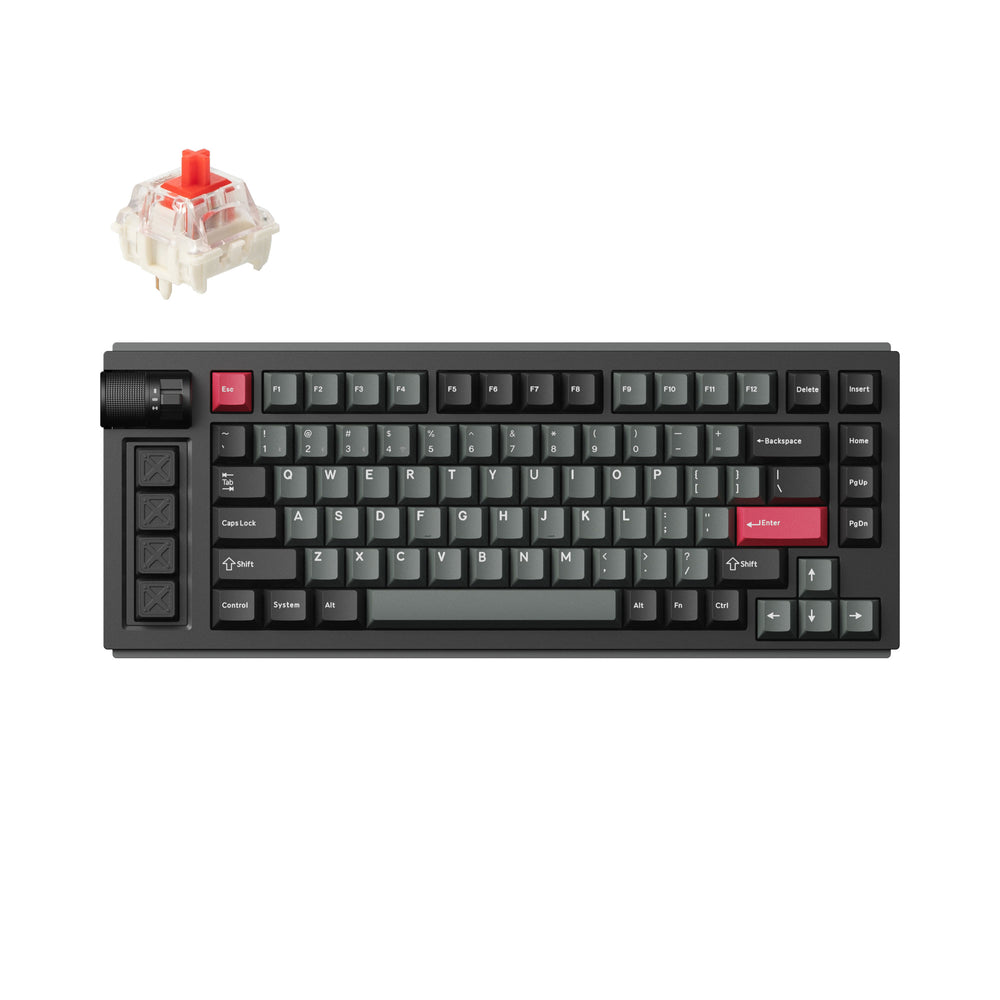

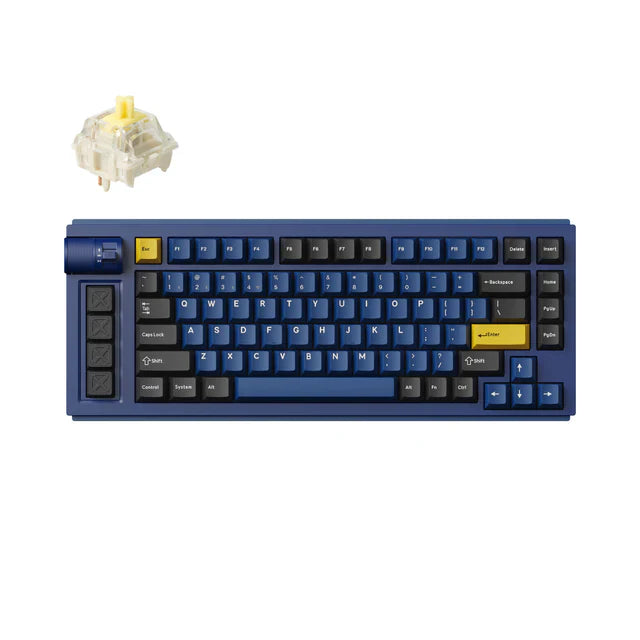

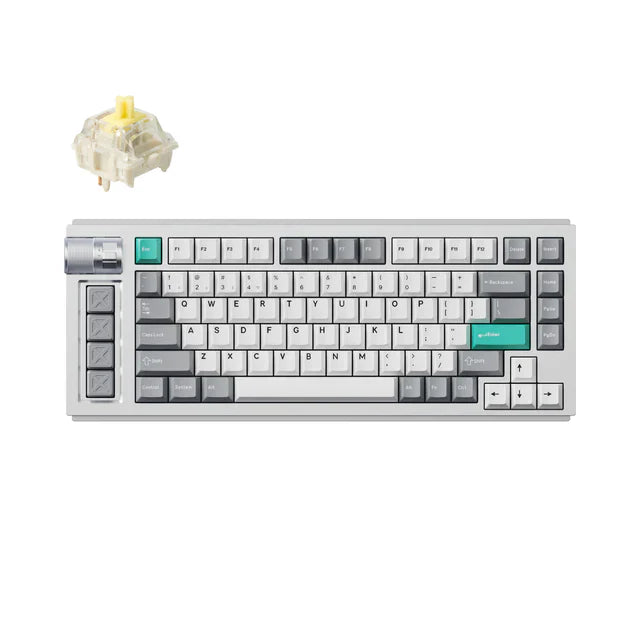

Lemokey L1 QMK/VIA Wireless Custom Gaming Keyboard

SKU: L1-M4
€209,00

Type
Color
Switches

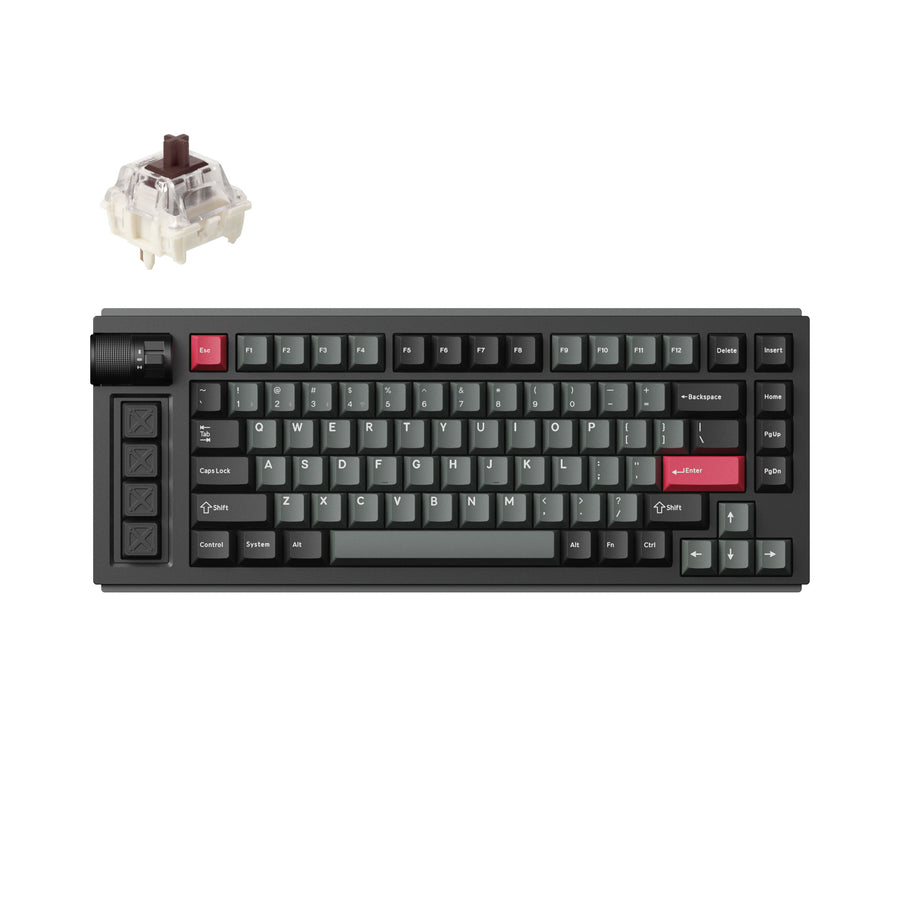

The Fully Assembled version includes:
  •  The keyboard PCB, the case, and the PC plate.
  • Keycaps (included Mac & Windows keycaps).
  • Switches.

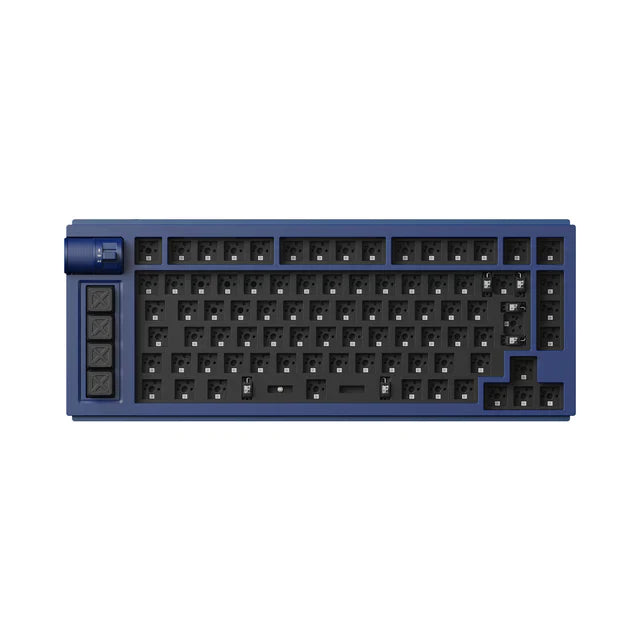

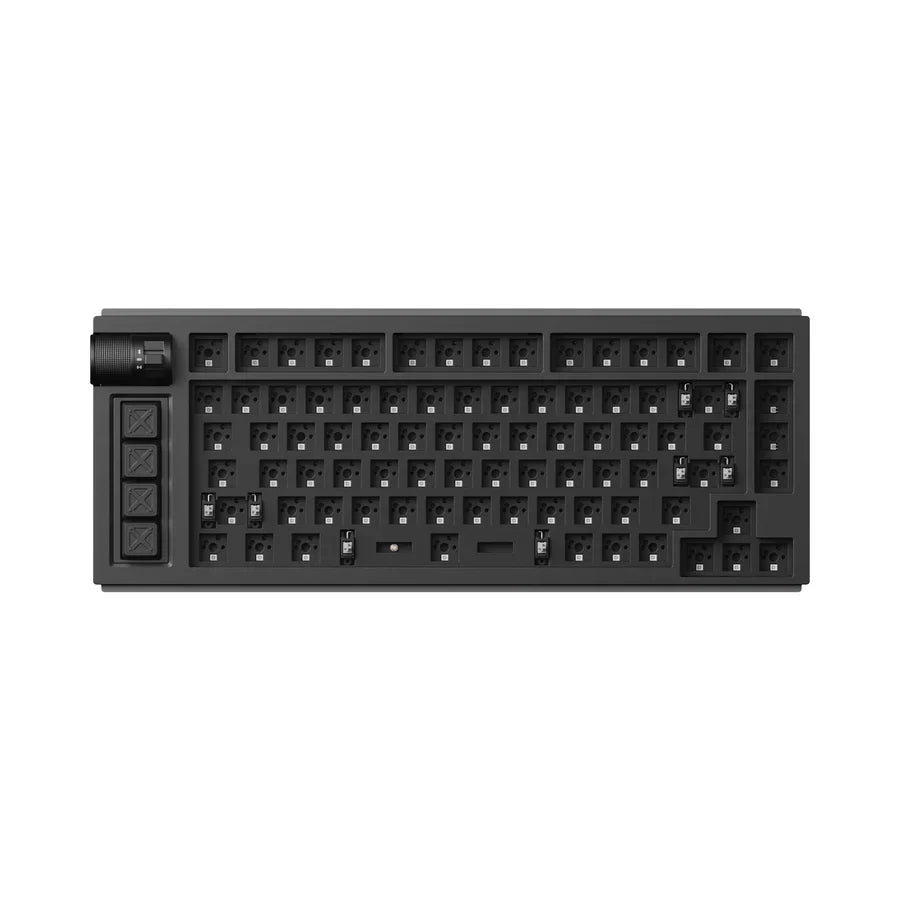

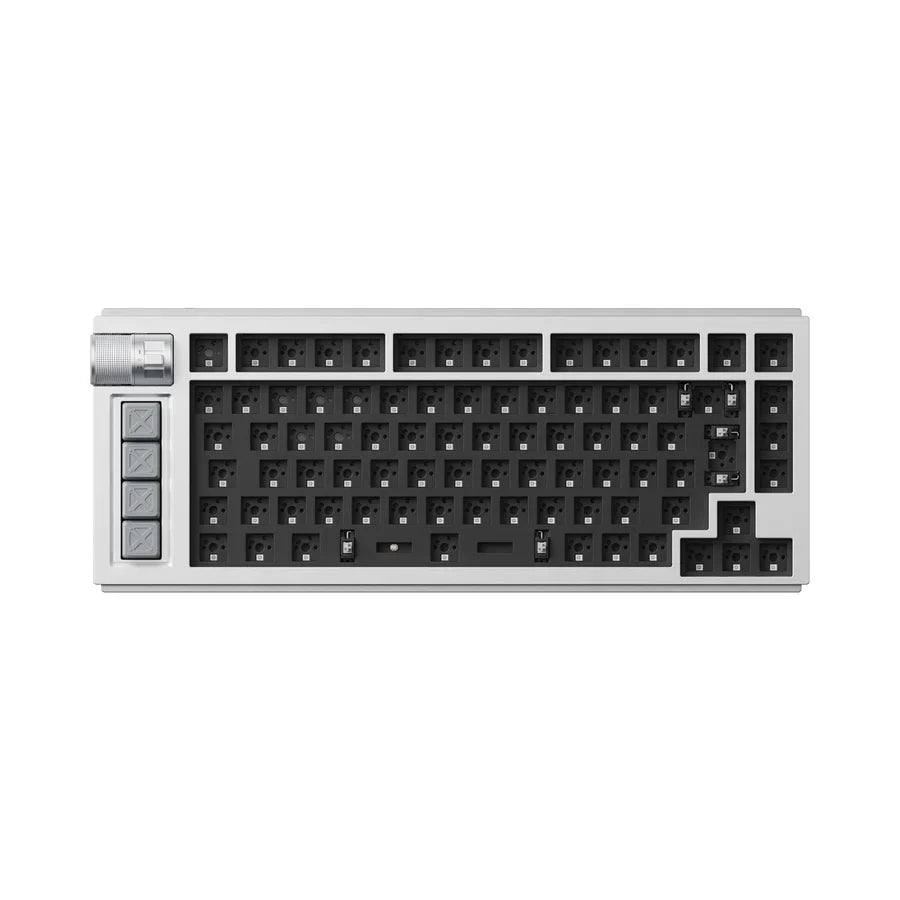

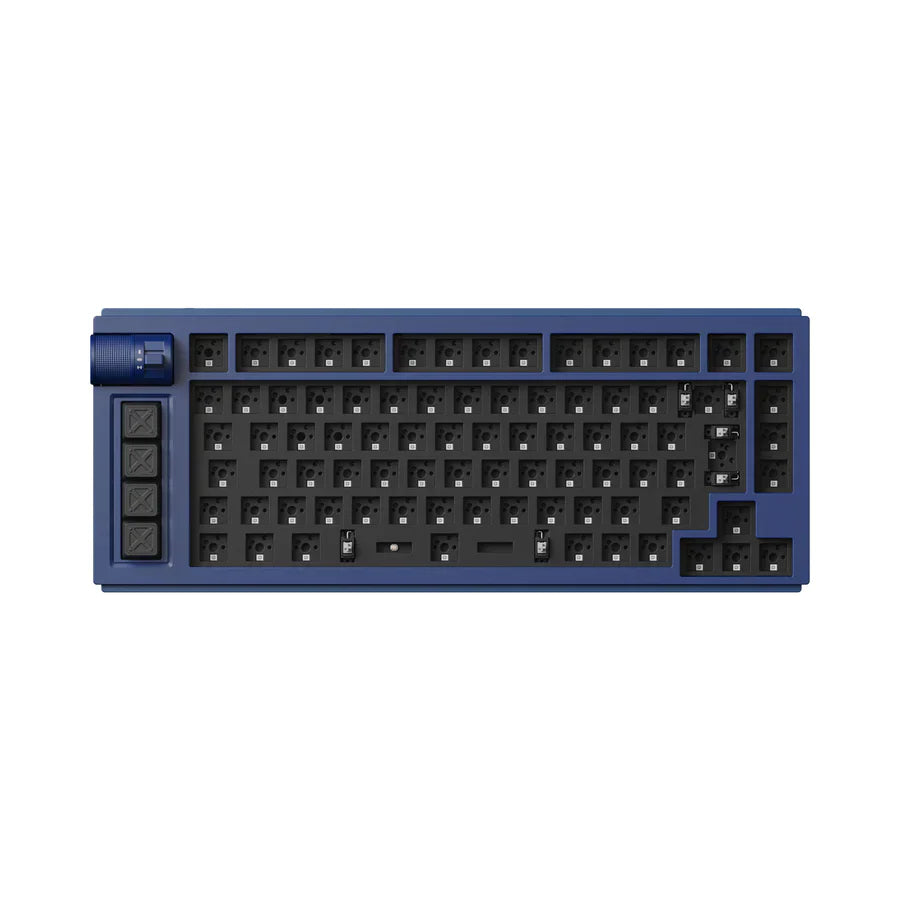

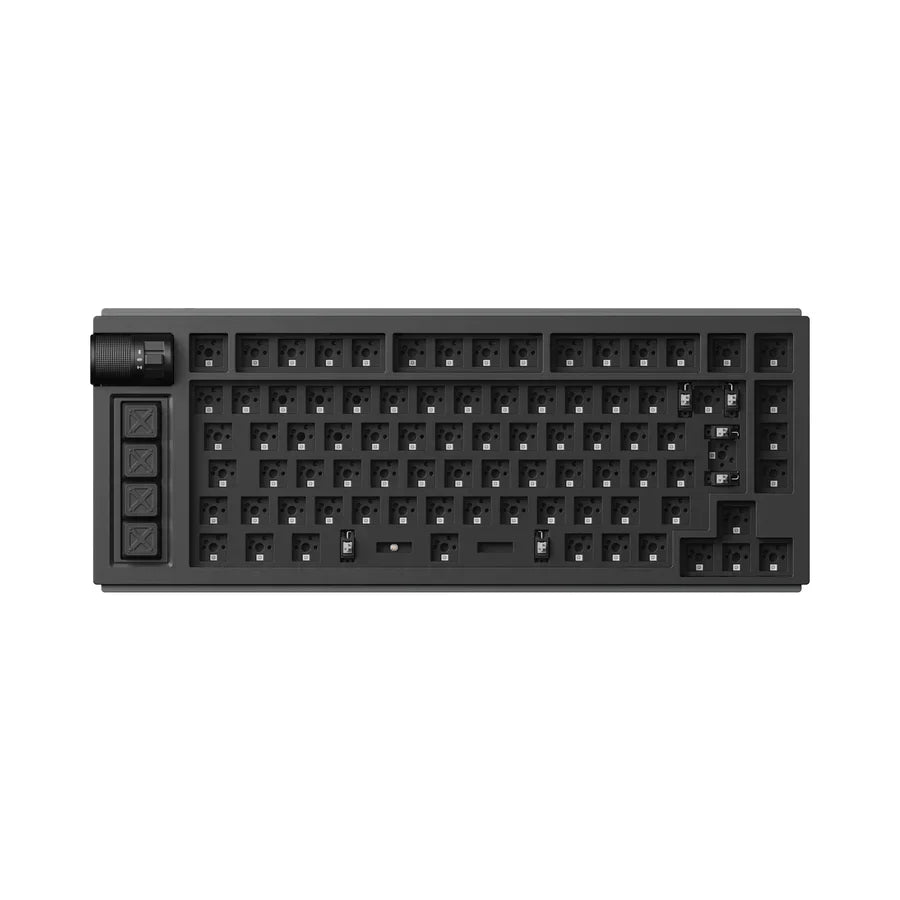

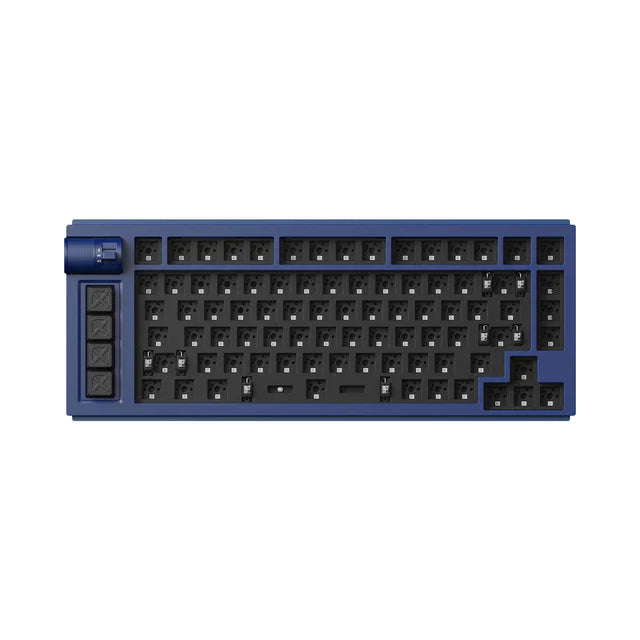

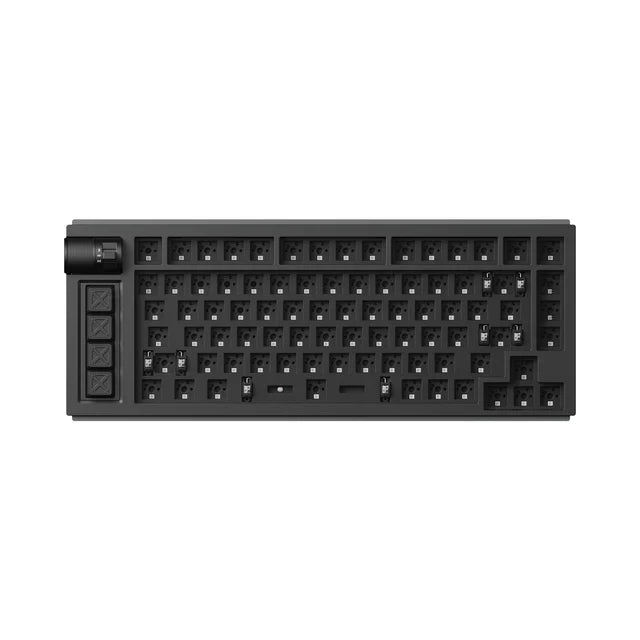

The Barebone version does not include the keycaps and switches.
No discount codes can be used for L1.

Lemokey L1 QMK/VIA Wireless Custom Gaming Keyboard

LEMOKEY L1

Lemokey L1 is a 75% layout QMK/VIA custom wireless mechanical keyboard with a full aluminum body. Designed for the gaming experience, L1 offers a 2.4 GHz wireless connection complemented by full support for Bluetooth and wired modes, and up to 3 devices with freedom switching under Bluetooth mode, taking your gaming experience and productivity to a new level. A creative design of the roller and connection mode toggle also makes it look cooler and more convenient.

Lemokey L1 QMK/VIA Wireless Custom Gaming Keyboard
Lemokey L1 QMK/VIA Wireless Custom Gaming Keyboard

The Lemokey L1 as a brand of Keychron can be assembled easily so you can mod each component the way you want. The L1 provides you with the most complete function with a combination of tri-mode connection, double-shot Cherry PBT keycaps, double-gasket design, hot-swappable PCB, etc. You can easily customize any key or create macro commands through VIA software.

features-of-lemokey-l1
Customize Your Lemokey L1

Choose the keycaps, switches, and more accessories for your L1.

Play Wirelessly

2.4 GHZ WITH 1000 HZ POLLING RATE

Get ready for an unparalleled wireless gaming experience with advanced wireless connection technology. L1 is designed with a game-specific 1000 Hz polling rate 2.4G wireless connection. Plus, you can also toggle among 3 different wireless devices through its stable Bluetooth 5.1 for seamless multitasking. Wireless freedom is now a reality and offers increased flexibility for gamers.

Lemokey L1 QMK/VIA Wireless Custom Gaming Keyboard

Designed For Gamers

ULTRA-LOW LATENCY AND FAST RESPONSE

A brand new powerful ultra-low-power ARM chip (MCU) that is armed with 256K Flash to provide more flexibility for developers. With a super-fast Type-C wired connection (average latency < 1.5 ms), and a pro-grade 2.4G wireless connection with an average latency of less than 2 ms, L1 offers ultra-low latency and a quick response gaming experience that will leave you amazed. This powerful transmission capability also makes gamers no longer limited to the keyboard under the wired mode. L1's wireless experience has been elevated so much that it is even difficult to tell from a wired one.

Lemokey L1 QMK/VIA Wireless Custom Gaming Keyboard

Refined Desk Art Pieces

FULL ALUMINUM FRAME

Every detail is carefully crafted and optimized, this exquisite metal L1 keyboard features a 6030 aluminum frame and is finally completed through 24 processes including CNC machining, polishing, anodizing, and sandblasting.

Lemokey L1 QMK/VIA Wireless Custom Gaming Keyboard
Lemokey L1 QMK/VIA Wireless Custom Gaming Keyboard

Programmable

Creative Roller Design

A programmable roller with a connection modes toggle design in the upper left corner gives the L1 a more mechanical touch. The roller is preset with the volume adjustment feature, or you can also customize it to your desired key or macro commands. It allows you to easily adjust your custom media even in fast-paced competitive gaming.

Lemokey L1 QMK/VIA Wireless Custom Gaming Keyboard

Durable, Non-Shine Through

PREMIUM DOUBLE-SHOT PBT KEYCAPS

The L1 is equipped with premium non-shine through double-shot Cherry PBT Keycaps, It not only offers a comfy typing angle but its material is durable, anti-oil, wear-resistant, and retains its aesthetic look even after long-term use.

Cherry Double-Shot PBT Keycaps
Cherry Double-Shot PBT Keycaps

Double-Gasket

COMFORTABLE TYPING EXPERIENCE

Experience the next level of key sounds and comfort with the Keychron signature double-gasket mount design together with two layers of sound-dampening foam and a flexible PC (Polycarbonate) plate. This design allows the keyboard to get comfortable typing feedback and improves the overall typing sound.

Structure of Lemokey L1structure-of-lemokey-l1-mobile__PID:c10f2c41-1300-4c88-a415-5dcbfe197041
Q1 Pro Wireless Custom Mechanical Keyboard Suitable for All Devices
Q1 Pro Wireless Custom Mechanical Keyboard Suitable for All Devices

QMK/VIA

CREATE YOUR OWN KEYMAP

Customize your keys using the powerful QMK/VIA software to create and edit your own keymap. The open-sourced QMK/VIA software provides endless possibilities for you to remap any key and create any macro command, shortcuts, or key combinations in a browser to complete complex combos and release your game's potential.

Simply connect the L1 to your device with a cable, open the VIA software, import the JSON file, drag and drop your favorite keys or macro commands to remap any key you want on any system (macOS, Windows, or Linux). It’s never been so intuitive to personalize your very own keymap.

Check out the video above demonstrating how to remap the M0 key to a Sleep key with the VIA software to create a shortcut to put your Windows to sleep (Win + L).

Get the L1 keymap working on VIA

Since the VIA code for the L1 is still awaiting approval from Github, it is not yet automatically recognized. Please download the appropriate keymap JSON file (ANSI or ISO) below, open VIA, turn on "Show Design tab" on "Settings" tab, and drag the JSON file into the “Design” tab on VIA to get the L1 keymap working on VIA.

For More Keycap Profile

SOUTH-FACING RGB

Comes with a preset 22 types of RGB backlight settings. You can further fine-tune the RGB hue, saturation, brightness, effect speed, and different modes, or even customize your lighting by remapping these keys with QMK/VIA. The south-facing RGB illuminates the backlight better from the typist's perspective when the non-shine-through PBT keycaps are installed.

Hot-swppable feature of Lemokey L1

Hot-Swappable

CUSTOMIZE YOUR SWITCH ANYTIME

Every detail matters for a personalized typing experience, that’s why we give you the power. With the hot-swappable feature, you can hot-swap every switch on the L1 with almost all of the 3-pin or 5-pin MX-style mechanical switches on the market (including Cherry, Gateron, Kailh, Panda, etc.) without soldering required. Simply using the included puller, you can change switches to customize your own typing experience in seconds.

Exclusive Gateron Jupiter Switch

PRE-LUBED AND SMOOTH

Our exclusive Gateron Jupiter mechanical switch (for the Fully-assembled version only) comes with a 3-pin design, plus pre-lubed with a reliable Gateron quality standard with up to 80 million keystrokes lifespan delivering a smoother typing experience. Their unique LED diffuser design offers high RGB backlight transmittance and a softer backlight effect.

Gateron Jupiter Mechanical Switch Features

Screw-In Stabilizers

SMOOTH AND STABLE

The built-in PCB-mounted screw-in stabilizer creates a smooth typing experience and reduces the wobbliness of big keys such as the space bar, shift, enter, and delete keys. You can even customize it with your favorite third-party stabilizers with ease.

PCB screw-in stabilizers

What's in the box?

Package List of Lemokey L1 75% Layout custom keyboard version
Package List of Lemokey L1 Barebone version

Specs

Dimension369 x 146 mm (14.5 x 5.75 inches)
Number of Keys86 (75% layout)
LayoutANSI (US) Fully Asssembled and Barebone/ISO (EU) Barebone
Back Height without keycaps33.04 mm (1.30 inches)
Front Height21.03 mm (0.83 inches)
Front Height with keycaps29,06 mm (1.14 inches)
WeightAbout 1887 g (Fully Assembled version)
KeycapCherry double-shot PBT keycaps (Non-backlight shine through)
Frame MaterialFull CNC machined aluminum
Plate MaterialPC
SwitchGateron Jupiter (Fully Assembled version)
StabilizerScrew-in PCB stabilizer
Switch FaceSouth-facing RGB
Backlight22 types of RGB backlight options plus endless possibilities
Hot-swappableYes. Compatible with most of the 3 pin & 5 pin MX mechanical switches such as Gateron, Cherry MX and Kailh, etc.
MCUARM Cortex-M4 32-bit STM32F402 (256KB Flash)
Cable Length1.8 m
Polling Rate1000 Hz (2.4 GHz and wired) / 90 Hz (Bluetooth mode)
N-Key Rollover (NKRO)Yes for both wireless and wired modes
Operating Environment-10 to 50℃
Battery4000 mAh Rechargeable li-polymer battery
BT Working Time (Backlit off)Up to 200 hours (Lab test result may vary by actual use)
BT Working Time (RGB)Up to 100 hours (Lowest brightness)
Charging TimeAround 5 hours
Charging PortUSB type-C
Bluetooth Version5.1
Compatible SystemWindows/macOS/Linux
Connectivity2.4 GHz/Bluetooth / Type-C wired
Bluetooth Device NameLemokey L1
Bluetooth Operating DistanceWithin 10 meters (Open space)
Lemokey L1 User Guide

Learn more about the Lemokey L1 such as the shortcuts, assembling guide, factory reset, and more in the FAQ section.
