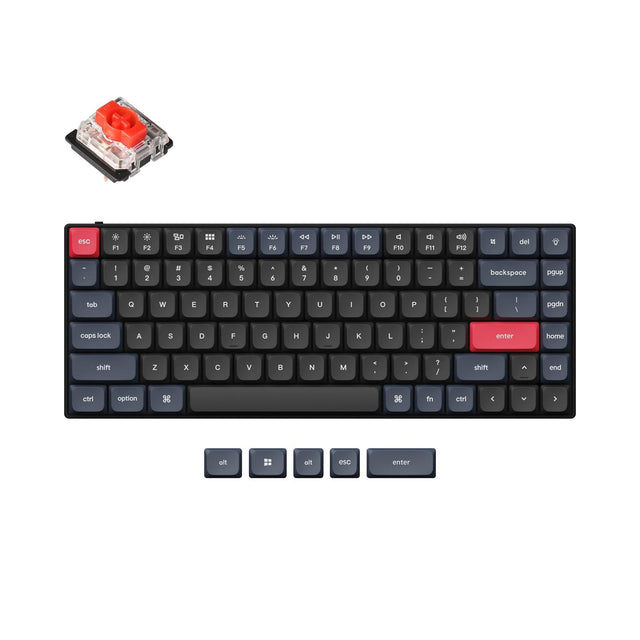

Keychron S1 QMK Personalizzato Tastiera meccanica (US ANSI Layout)
Keychron S1 QMK Personalizzato Tastiera meccanica (US ANSI Layout)
Keychron S1 QMK Personalizzato Tastiera meccanica (US ANSI Layout)
Keychron S1 QMK Personalizzato Tastiera meccanica (US ANSI Layout)
Keychron S1 QMK Personalizzato Tastiera meccanica (US ANSI Layout)
Keychron S1 QMK Personalizzato Tastiera meccanica (US ANSI Layout)

Keychron S1 QMK Personalizzato Tastiera meccanica (US ANSI Layout)

S1-A1

Prezzo regolare €109,00
/
13 in magazzino

Versione
Tipo di interruttore
Cambia opzione

La versione completamente assemblata comprende:

  • Corpo in alluminio pieno CNC, piastra in acciaio e PCB
  • Copritasti PBT a doppio scatto a basso profilo (inclusi copritasti per Mac e Windows).
  • Gateron interruttori meccanici a basso profilo.

Inserisci la tua e-mail su "Avvisami quando disponibile" se il modello del prodotto è esaurito

Nessun codice sconto può essere utilizzato per la S1.

Customer Reviews

Based on 1 review
0%
(0)
100%
(1)
0%
(0)
0%
(0)
0%
(0)
M
Maxime PUPAT
Very good feeling with the lowprofile switch but...

The low profiles swiths are awesome, specially with low trapezoid keys. But the fn key have a bad placement. You should move it at left.
At right, home, and end keys aren't intuitively accessible or too close of the arrow keys. I'm a developer and I edit text files every day with my keyboard. I use massively some shortcuts under jetbrains intellij IDE. Moving fn key to left and integrate home end respectively like left arrow and right arrow is a good idea.
Maybe you should also split the space key and add ctrl + shift between the two space keys. Very good to engage shortcuts with keys in the middle of the keyboard.

Keychron S1

Keychron S1 is the first 75% layout all-metal low profile custom mechanical keyboard. With its all-metal ultra-slim CNC machined body, QMK/VIA support, and low profile double-shot PBT keycaps, the S1 gives you a high-end typing experience, a unique design setup, and endless possibilities. One of a kind.

Keychron S1 QMK Custom Mechanical Keyboard
Keychron S1 QMK Custom Mechanical Keyboard
Features of Keychron S1 QMK Custom Mechanical Keyboard

Choose the switches and more accessories for your S1

Full Metal And Ultra-Slim Body

It’s incredible to make such a slim keyboard with a solid piece of aluminum. The whole body of the keyboard is processed through CNC machined, polished, anodized, sandblasted, and undergoes 24 more manufacturing stages to make the S1 slim, elegant and solid.

Keychron S1 QMK Custom Mechanical Keyboard

A Customizable Low Profile Keyboard

To build a customizable low profile keyboard, we designed every part that is easy to assemble. Therefore, you can customize and adjust each component if you want.

Keychron S1 75% Ultra-slim Low Profile Custom Mechanical Keyboard
Keychron S1 75% Ultra-slim Low Profile Custom Mechanical Keyboard

An Epic Core Inside The Keyboard

A powerful MCU ARM structure that is armed with 128K Flash provides more flexibility for developers. The polling rate is 1000 Hz out of the box, which makes latency non-existent for the competitive game.

Low Profile Double-Shot PBT Keycaps

We created a new low profile double-shot PBT keycaps set for the S1. The PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading.

OSA Profile Double-shot PBTKeychron S1 Custom Mechanical Keyboard
Keychron S1 75% Ultra-slim Low Profile Custom Mechanical Keyboard

Switch Layouts Between macOS & Windows

Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Keychron S1 comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.

Adjustable In Two Angles

The S1 has two extra feet that allow you to adjust the tilt angle of the keyboard. One is 3°, and another is 6°, enabling you to find the most comfortable angle for your wrist.

Keychron S1 75% Ultra-slim Low Profile Custom Mechanical Keyboard
Keychron S1 75% Ultra-slim Low Profile Custom Mechanical Keyboard

Program S1 With QMK & VIA

With full QMK and VIA support, you can easily program and remap each key on the keyboard. The open-source firmware means endless possibilities for keyboard layouts, shortcuts, backlight effects, and more.

QMK VIA screen capture of Keychron S1 Custom Mechanical Keyboard

Get The S1 Keymap Working On VIA

Since the VIA code for the S1 is still awaiting approval from Github, it is not yet automatically recognized, you will need to manually download and import the S1 keymap.

 To get started, please follow the steps: Download the appropriate keymap JSON file below, open VIA, turn on "Show Design tab" on "Settings" tab, and drag the JSON file into the “Design” tab on VIA to get the S1 keymap working on VIA.

S1 Keymap JSON Files

Hot-swappable (Option)

The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB only supports Gateron low profile mechanical switches.

Barebone US layout ofKeychron S1 Custom Mechanical Keyboard

22 RGB Light Effects

Comes with up to 22 types of RGB backlight effects, you can choose the one fit your mood. And you can further fine-tune the RGB hue, saturation, brightness, effect speed with ease.

Gateron Low Profile Mechanical Switch

The optimized molded Gateron low profile MX Mechanical switch is designed to enhance reliability. Gateron's reputable switches are your best choice for a precise, smooth, and reliable fingertip feel, whether you prefer linear (red), clicky (blue), or something in between (brown).

Keychron S1 Gateron K Pro Switch Features

What's in the box?

Keychron S1 75% Custom Mechanical Keyboard Barebone Version

Specs

Width118.4 mm
Length310.4 mm
Front Height7.8mm (without keycaps)
Back Height13.7 mm (without keycaps)
Feet Height2.7 mm
Angle3° / 6°
Weight960 g ± 10g
Body MaterialFull CNC machined aluminum
PlateSteel
Polling Rate1000 Hz
Keycaps (Fully Assembled Version)Double-shot PBT low profile keycaps, not shine-through
MCUUltra-low-power ARM Cortex-M4 32-bit STM32L432 (128KB Flash)
BacklightNorth-facing RGB LED
SwitchGateron Low Profile MX Mechanical
Switch SupportHot-swappable (Gateron Low Profile MX Mechanical)
ConnectivityType-C
CableType-C cable + Type-A to Type-C adapter
Operating Environment-10℃ to 50℃
StabsPlate stabs
Section
Drop element here!
Keychron S1 User Guide

Learn more about the Keychron S1 such as the S1 shortcuts, assembling the S1, factory reset, and more in the FAQ section.
